MMC/TMT-24 Ferrule Polishing Fixture
Applied to polishing MMC/TMT ferrules. Long lifespan, and high stability design. Each time can polish 24 ferrules. A good end face and the 3D can reach 100% pass rate.
Classification:
Center Pressure type
Key words:
Features:

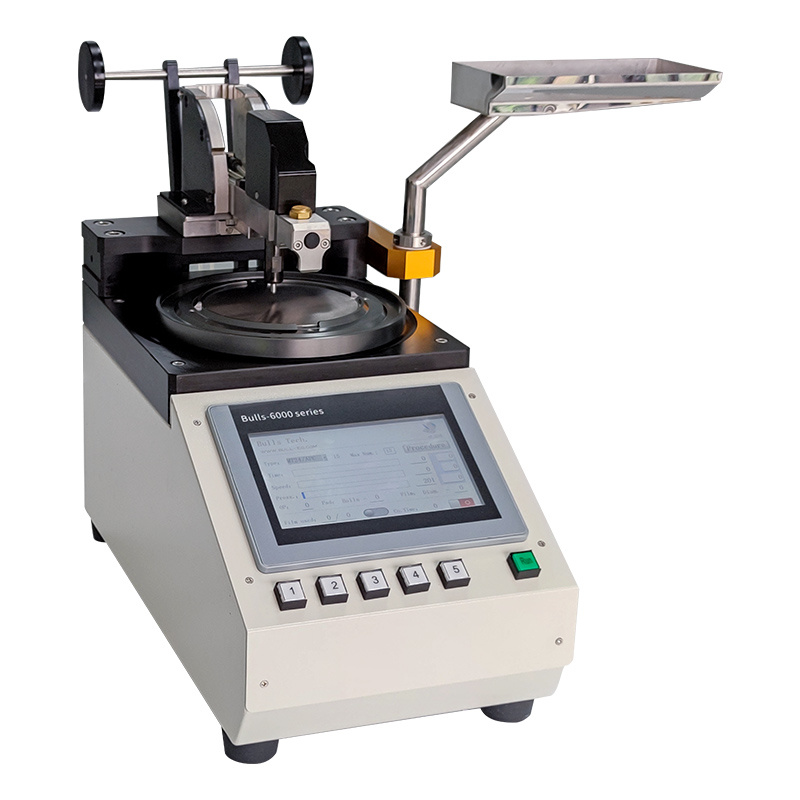

1, Matched with Bulls polishing machine, except for the influence of technology; the 3D can reach 100%; excellent end face effect and stability.
2, Selection of high-quality material with heat treatment, super precision machining and strengthened technology can not only greatly improve the precision and stability of fixture, but also double the lifetime of it.
3, This polishing fixture is a patented product of Bulls, and its clamping method are protected by the national patent.
4, Each time can polish 24 TMT/MMC ferrules.
5, Special polishing fixture can be designed and customized according to the product requirement of customer.
Main parameter:
|
Item |
Model |
Holes |
|
MMC/TMT-24 Polishing Fixture |
MMC/MT-24 (24 ferrules) |
24 holes |
Polishing 3D data:
|
Ferrule X angle (”) |
Ferrule Y angle (”) |
|
0.062 |
7.969 |
|
0.145 |
7.998 |
|
0.101 |
8.021 |
|
-0.025 |
8.095 |
|
0.078 |
8.093 |
|
0.041 |
8.005 |
|
-0.080 |
8.024 |
|
0.039 |
8.005 |
|
0.049 |
8.084 |
|
0.032 |
8.068 |
|
-0.004 |
8.056 |
|
-0.082 |
8.061 |
|
-0.016 |
8.074 |
|
0.001 |
8.112 |
|
-0.033 |
8.065 |
