Best concentricity Master Patch Cord, Insertion loss≤0.03dB
This product uses strictly screened ceramic ferrule and high quality core, using optimized special manufacturing process and advanced polishing technology.
Classification:
Best concentricity Master Cables
Key words:
Features：
· Ultra-low loss IL≤0.03, ultra-high concentricity, ultra-low reflection RL≥60dB (UPC) /RL≥80dB (APC).
· Products with high reliability types and other special requirements can be customized.
| Insertion & Return Loss | |||
| Test wavelength | Concentricity value/μm | Insertion loss/dB | Return loss/dB |
| 1310 | PC ≤ 0.3/0.5 | ≤ 0.03 (reference) | PC ≥ 58/60dB |
| APC ≤ 0.5 | APC ≥ 75/80dB | ||
| 3D Specification | ||||
| Parameter index | Radius of curvature(mm) | Apex Offset | Fiber Height | Angle(°) |
| PC | 7-15(LC) 10-18(SC) | ≤ 30 | ±50 | / |
| APC | 6~10 | ≤ 30 | ±50 | 8±0.15 |

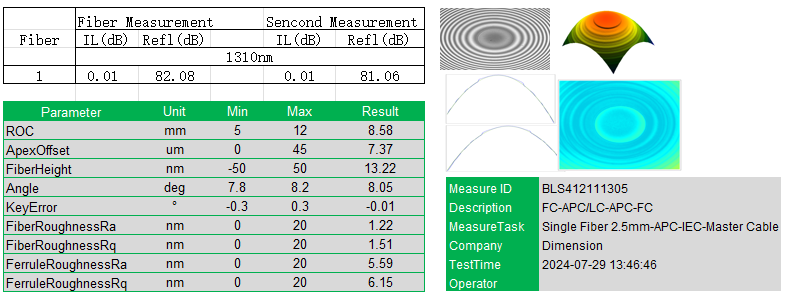

Typical Data
