BULLS-PM2000 AUTOMATIC AXIS ADJUSTMENT AND MEASURING INSTRUMENT
Bulls-PM2000 automatically adjusted axis and measuring instrument are controlled by computer program (or manually adjusted), which are mainly used for KEY adjustment of ordinary polarization maintaining optical fibers. Due to its high accuracy, strong stability, wide application range and high flexibility, it can achieve high-precision adjustment and alignment of KEY keys at any angle (software controlled alignment accuracy is ± 0.2 degrees).
Classification:
Polarization Adjustment/Measuring
Key words:
PRODUCT CHARACTERISTICS:

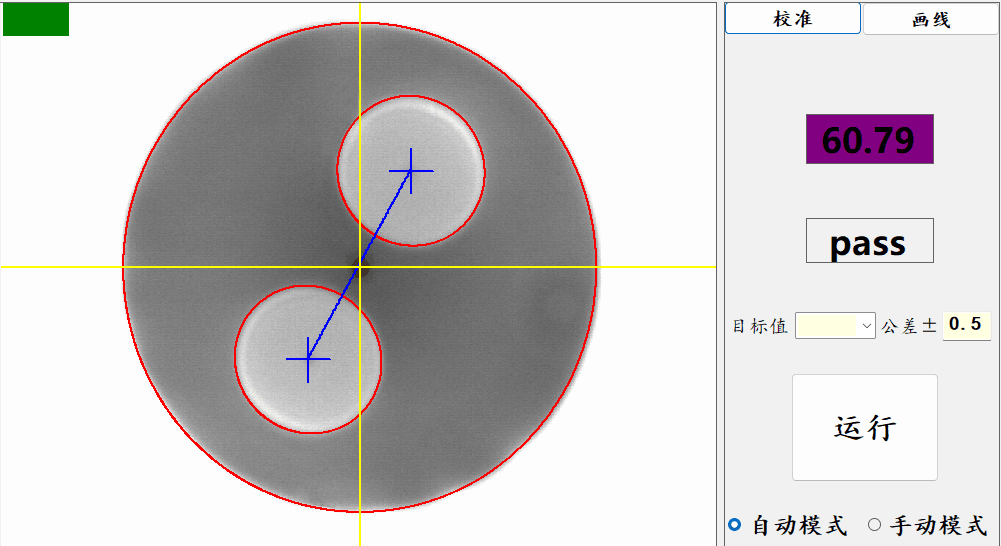

● Panda polarization-maintaining fiber can be controlled by the program to realize the automatic adjustment of the KEY key, high repeatability, good stability;
● Manual adjustment of any other type of polarization-maintaining fiber;
● It can be cured online on the platform or put into other curing equipment after UV glue is pre-fixed.
● The assembly positioning accuracy is 3-5 times higher than that of traditional equipment.
● Support a variety of product types (such as FC/SC/LC, etc.);
| Overall Dimensions: | 500mm x 260mm x 2 |
| Key Precision: | ±0.2° |
| In-Line Curing Time: | 5-10min |
| Off-Line Curing Time: | UV adhesive curing 6-10S |
| Processing Capacity: | SC/FC/LC |
| Voltage | 100-230VAC, 50/60HZ, 2A Fuse. |
| Power： | 130W |
