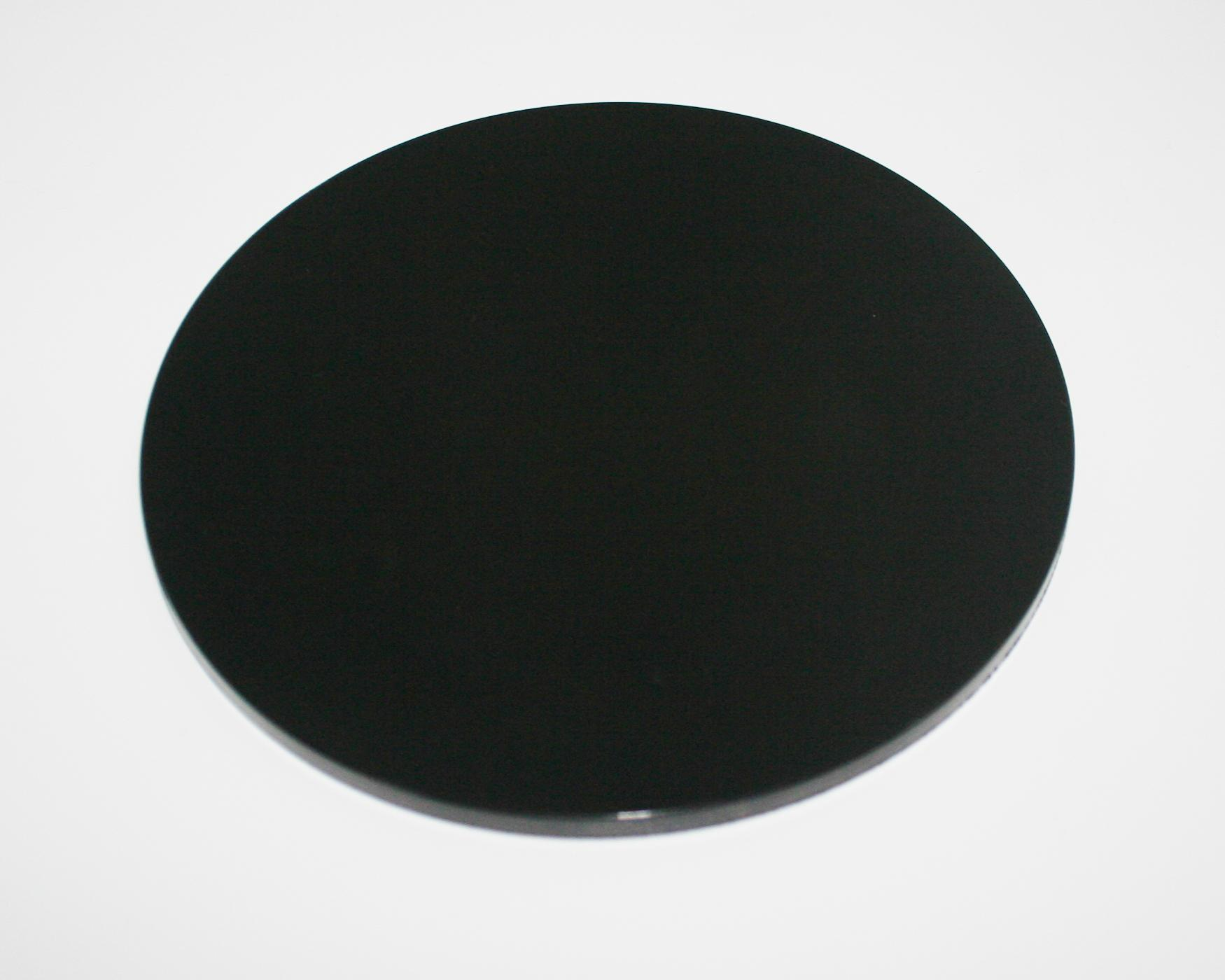

Bulls Fiber Polishing Rubber Pad
Applied to fiber optical polishing machine. Excellent 3D performance ,matching Bulls machines and fixtures the APEX OFFSET can be controlled below 35. The polishing films is easily attached to Bulls Rubber pad.
Classification:
Consumables and accessories
Key words:
Features:
· Imported first-class brand quality raw materials are used to achieve a good service life.

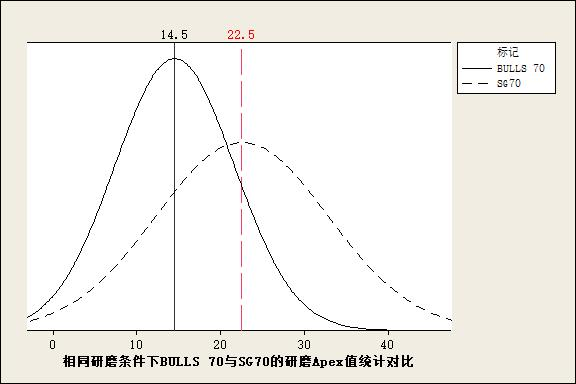

· The precision manufacturing process that has been repeatedly tested and verified makes it have better 3D performance than similar products in the market, and the average deviation value of Apex is about 5um~15um smaller than that of similar products in the market under the same test conditions (Figure 1).
· With good adhesion, the rubber pad is much more “smooth” and “adhesive” than other similar products in the market, and not easy to peel off.
· Independent mold production, with stable and controllable quality, as well as good cost performance
· Enable to be widely used in various types of four-corner pressure polishing machine and center pressure polishing machine.
· Optional size: 5 inches (127mm) and 6 inches(153mm).
Product parameters:
| Rubber pad model | degree | Thickness (mm) | Dimensions |
| BULLS-60 | 60 | 5.00 | 5 inches (127mm) / 6 inches（153mm） |
| BULLS-70 | 70 | 5.00 | 5 inches (127mm) / 6 inches（153mm） |
| BULLS-75 | 75 | 5.00 | 5 inches (127mm) / 6 inches（153mm） |
| BULLS-80 | 80 | 5.00 | 5 inches (127mm) / 6 inches（153mm） |
| BULLS-85 | 85 | 5.00 | 5 inches (127mm) / 6 inches（153mm） |
| BULLS-90 | 90 | 5.00 | 5 inches (127mm) / 6 inches（153mm） |
 |
 |
Product parameters:
| Rubber pad model | degree | Thickness (mm) | Dimensions |
| BULLS-60 | 60 | 5.00 | 5 inches (127mm) |
| BULLS-70 | 70 | 5.00 | 5 inches (127mm) |
| BULLS-80 | 80 | 5.00 | 5 inches (127mm) |
| BULLS-85 | 85 | 5.00 | 5 inches (127mm) |
| BULLS-90 | 90 | 5.00 | 5 inches (127mm) |
|
|
